[linc_64]

Does anybody have a template for a 1919a4 RSP? I need it for a couple of the holes, the rest of the holes I'll line up with the parts clamped together.
Thanks



[largenfirm]

You could just take one of the RSP blueprints, and scale it until it is 1:1...



[TbcSEOD]

http://1919a4.com/imagegallery/images/1919rightsideplateplan1.jpg

~T



[brnesmk]

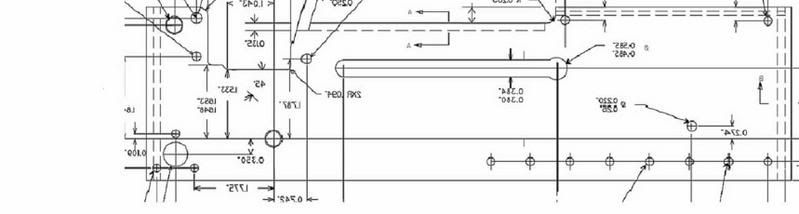

side plate templat 1 to 1

I resized this one and printed it on transparencies for my front cartridge stop it took some trial and error printign and checking with dial calipers and machinist rulers the circles around the center marks look wobly but the centers are on. I hope this helps alittle. If the link doesnt work email me at [email protected] and ill sent you the bitmap image I used in micro paint.



http://i37.photobucket.com/albums/e64/barebackjack_us/1919100jpeg.jpg
